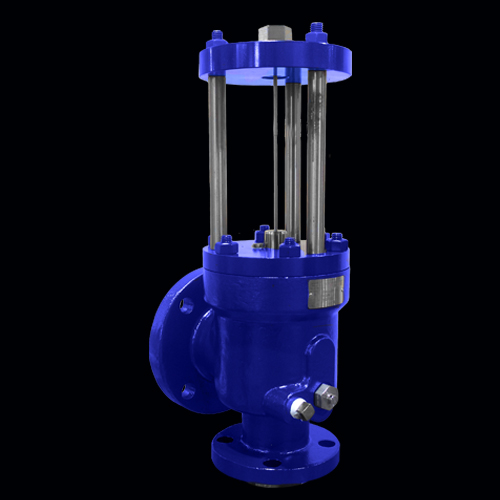

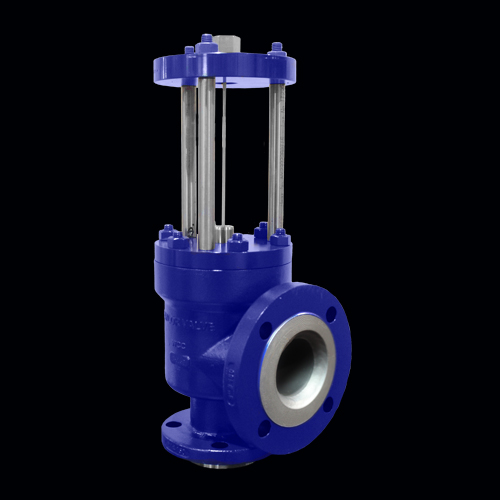

Model CC
The Model CC holds a bubble-tight, closed position until pressure reaches an exact set point. At set point, the valve instantly opens to relieve pressure from a protected system.
Specifications
- Pressure Set Point Range: 15 to 1,480 PSI
- Sizes: 1 X 2″ to 8 X 10″
- Connections: Flange connections available – 150# to 600#
- Valve Seals: Available for high & low temperatures, FKM standard.
- Standard Materials: ASME Section II materials
- Accuracy: ASME +/-5% above 40 PSI, +2 PSI below 40 PSI
Download brochure for complete details on features, advantages and benefits of the Model CC valve.
NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.
Applications
The Model CC valve provides safety for a wide variety of pressure relief applications. The ideal substitute for rupture discs.
Valve Options
Sensor Option
Valves can be equipped with a sensor option that allows for remote monitoring of the valves status.
Pin Holder
Pin holders are a great way to keep replacement pins ready to go right on the valve for when you need them
Safety Pin Cage
Add a safety pin cage to protect against foreign objects from interfering with the operation of the pin.
Flush Port
Add a flush port to add the ability to clean out the inside of the valve.
