Mallard 5660 High Pressure Regulators
Mallard 5660 High Pressure Regulators
Mallard 5660 High Pressure Regulators

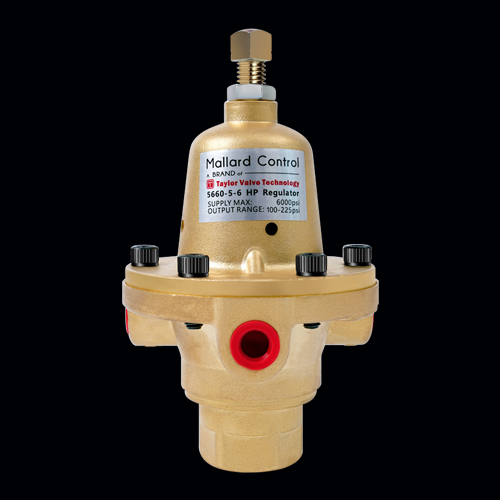

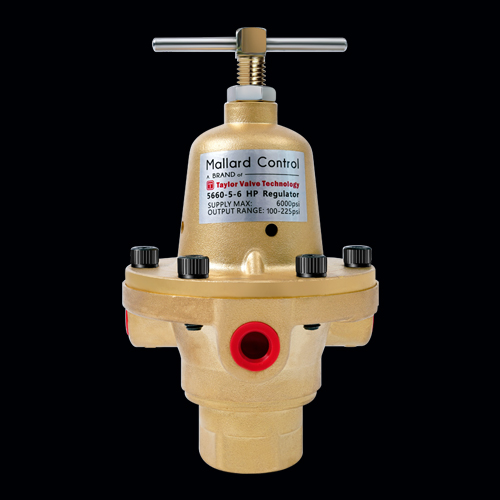

Model 5660 High Pressure Regulator

The Model 5660 is designed to reduce high inlet pressures to working pressures. Careful design and quality materials throughout assure long, trouble-free operation in the most difficult industrial environments.



SKU: MC-PR-5660 Categories: ,

Specifications

  • Connections: 1/4″ FNPT
  • Operating Temperature Range: -70 to 225℉ (-57 to 107℃)
  • Maximum Inlet Pressure: 6000 psig at 100℉ (38℃)
  • Outlet Ranges: 0 to 125 psi, 0 to 150 psi and 0 to 225 psi

Features

  • Non-venting
  • Seating surface is field repairable by simply rotating the seat block 90 degrees to a new seating surface.

NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.
